TPSMC16A-EVR

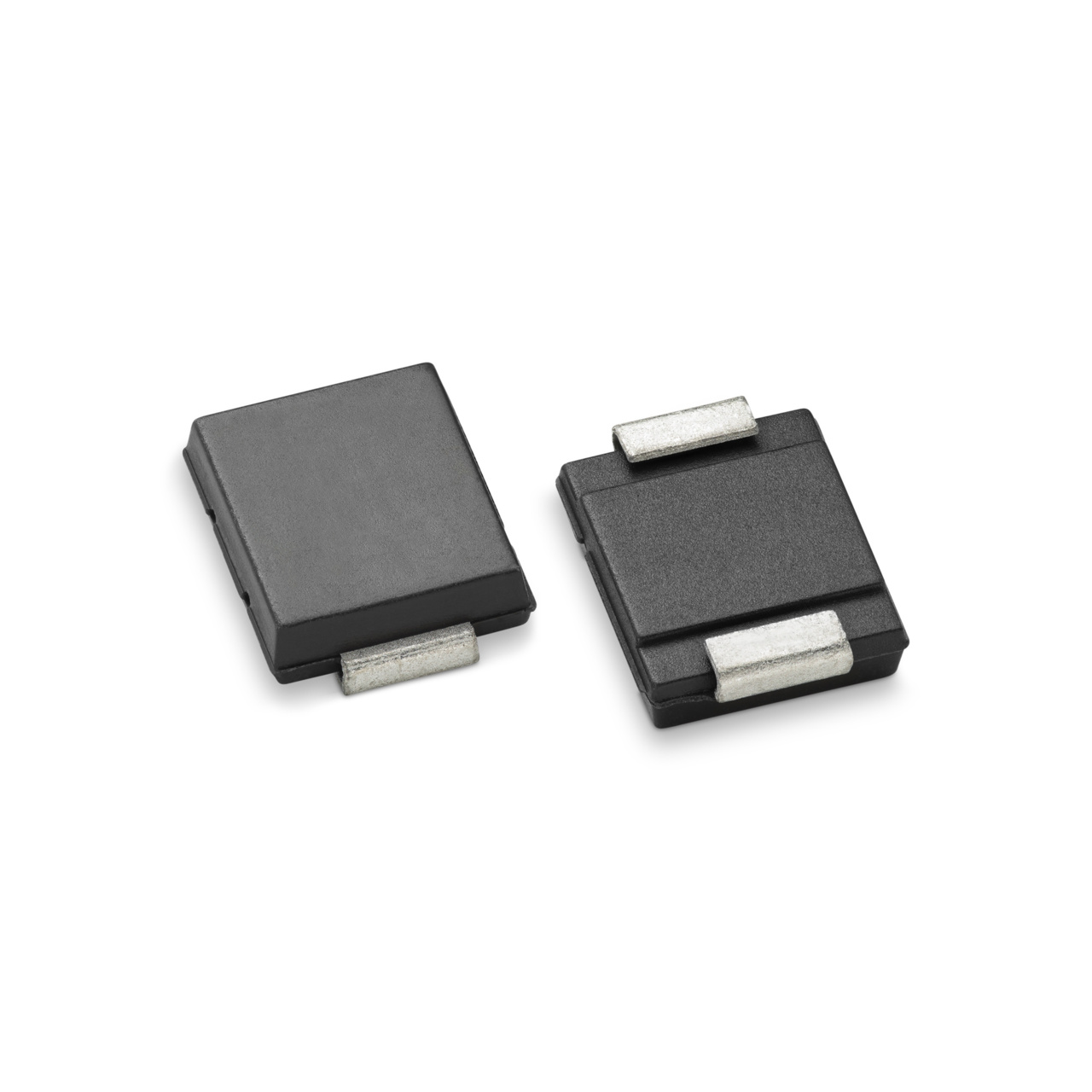

Auto TVS in DO-214AB | Series: TPSMC-EVR
Littelfuse TPSMC-EVR Series of Transient Voltage Suppression (TVS) Diodes can provide secondary transient voltage protection from transients induced by load dump and other transient voltage events for sensitive electronics. The TPSMC-EVR Series offers superior electrical performance in a small footprint DO-214 package, allowing designers to upgrade their circuit protection without altering their existing design footprint or provide more robust protection in new circuit layouts.
| 参数 | 数值 |
|---|---|
VR （V型断态） | 16 |
瓦特（W） | 1500 |
I PP 10x1000μs （A） | 57.7 |
MIN VBR@IT (V) | 17.8 |
最大 VBR@IT （V） | 19.7 |
最大箝位电压（Vc）（V） | 26 |
IT （mA） | 1 |
最高工作温度 （°C） | 150 |
单向/双向 | 单向 |
封装 | DO-214AB |
VR（Vso） | 16 |
Ir@Vr（μA） | 1 |
峰值脉冲功率 - 10x1000 （W） | 1500 |
极性 | 单向 |
- 符合AEC-Q101
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ºC
- Meets ESD HBM: 8 kV and M4 machine model: 400 V
- 小尺寸封装
- Ideal for automated placement
- 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- 出色的箝位能力
- 非常快速的响应时间
- 增量浪涌电阻较低
- Available in uni-directional and bi-directional
TPSMC16A-EVR 应用
- Protects sensitive electronics from voltage transients caused by inductive load switching and lightning events
- Designed for safeguarding ICs and MOSFETs against transient overvoltage stress
- Ideal for protecting signal lines in sensor units and control circuits
- Enhances system reliability by preventing transient-induced damage
- Suitable for use in industrial, automotive, and telecommunication applications
