TDB04H0SB1R
Switch TDB04H0SB1R | 系列号：TDB的

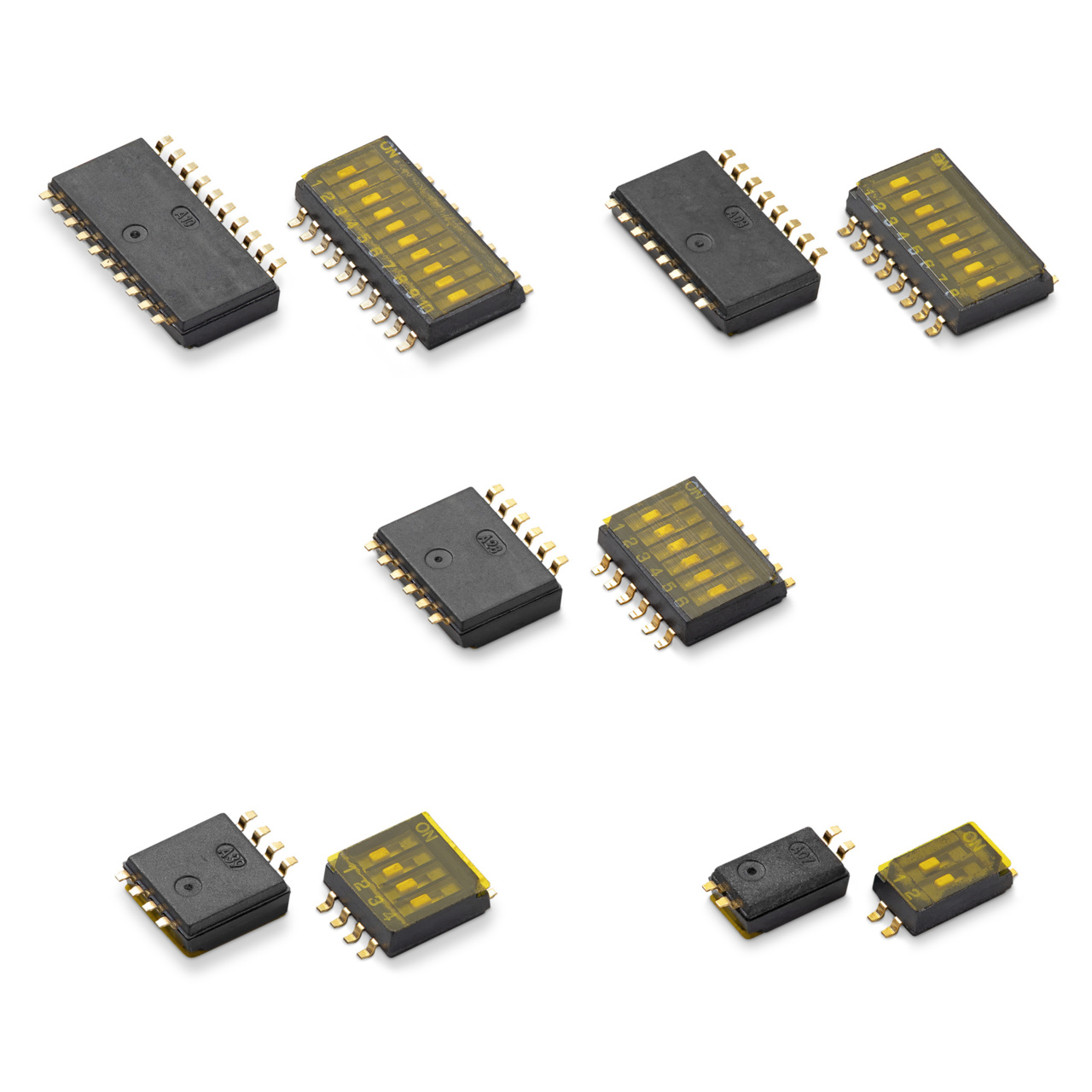

The TDB series is an ultra-miniature, half-pitch surface-mount DIP switch (P = 1.27 mm), achieved by significantly reducing the size of its internal mechanism to enable high-density mounting. It is sealed with top tape to support washable processing. TDB Series comes as a sister solution to our TDA Series of DIP switches.
| 参数 | 数值 |
|---|---|
电路 | SPST |
Activation Type | Maintain |
位数 | 4 |
Rating - Minimum Current | 25 mA |
Rating - Maximum Current | 100 mA |
Electrical Life Cycles | 1000 |
Pitch | 0.050 inch (1.27 mm), Half |
Terminals Type | 表面安装式 |
Terminals Plating | 金 |
Terminals Complementary Information | G |
Height Above Board | 0.091 inch (2.30mm) |
Contact Plating | 金 |
驱动器 | Slide (Standard) |
Illumination | 不適用 |
Electrical Rating - Activated - Voltage DC | Max 24 Volt |
Washing Process - Compatibility | 是 |
- Gold plated contacts
- Ultra miniature size enables high density mounting
- Top tape sealed to support washable processing
- 符合RoHS标准
TDB04H0SB1R 应用
- 工业控制设备
- 电源
- Security and Fire Systems
- IoT设备
- Inverter systems
TDB04H0SB1R资源
链接已复制到剪贴板显示 1 到 1 的 1 总结果
分享
| 产品号 | 零件描述 | RoHS | 无铅 | RoHS（2015/863/EU）认证 | REACH（SVHC）声明 | REACH（SVHC） | 无卤素 | IPC-材料声明 | |
|---|---|---|---|---|---|---|---|---|---|
| G01821919 | Switch TDB04H0SB1R | 查看更多 |
如果您要查找的产品环境信息未出现在此选项卡中，请填写 产品环境信息申请表。
