KMR221G
KMR221G LFS | Series: KMR2

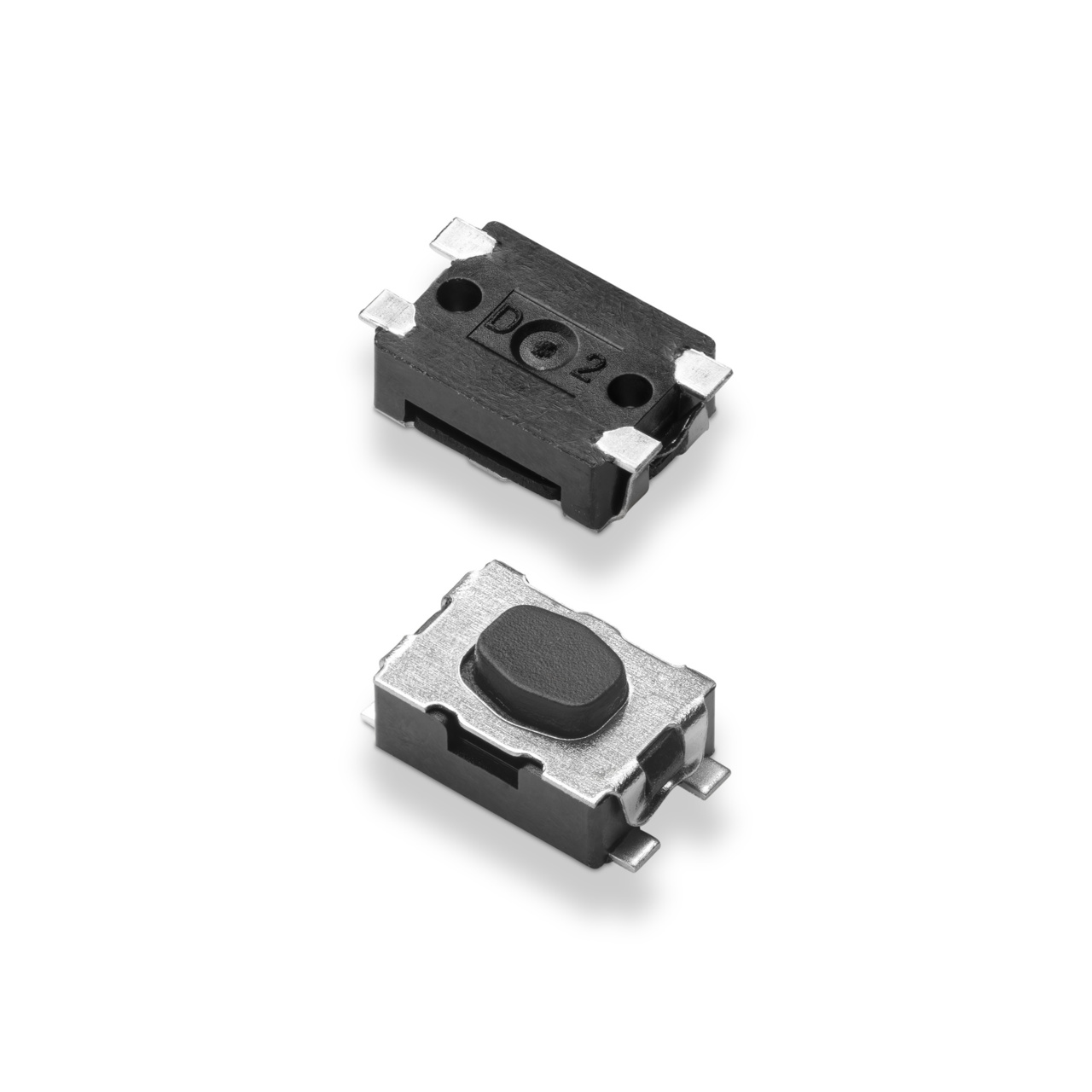

The KMR2 series of micro miniature tactile switches for SMT are 1.9 mm high momentary action tactile switches which are available with a variety of operating forces and in a range of electrical lifespans, depending on the model. The KMR2 series has ultra low current capabilities and is designed to give users a positive adaptable tactile feeling, ideal for industrial, medical, and automotive applications.
| 参数 | 数值 |
|---|---|
电路 | SPST NO |
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 1.5 N / Nominal 2 N / Max 2.5 N |
Electrical Travel | Min 0.15 mm / Nominal 0.25 mm / Max 0.35 mm |
Mechanical Life Cycles | 200000 |
入口保护 | IP 40 |
Illumination | 不適用 |
Contact Plating | 银奖 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
高度 | 1.9 |
Terminals Type | 表面安装式 |
Terminals Plating | Lead free silver |
Terminals Complementary Information | G |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
- 外形小巧
- Good tactile feedback
- Ultra low current capabilities
- IP40
- Compatible with lead free reflow soldering process of SMT devices
- Low halogen, RoHS and REACH compliant
KMR221G 应用
- 运输
- 工业电子
- 医疗设备
KMR221G资源
链接已复制到剪贴板显示 1 到 1 的 1 总结果
分享
| 产品号 | 零件描述 | RoHS | 无铅 | RoHS（2015/863/EU）认证 | REACH（SVHC）声明 | REACH（SVHC） | 无卤素 | IPC-材料声明 | |
|---|---|---|---|---|---|---|---|---|---|
| Y78B22110FP | KMR221G LFS | 查看更多 |
如果您要查找的产品环境信息未出现在此选项卡中，请填写 产品环境信息申请表。
