KMR633NGULC
KMR633NG ULC LFG | Series: KMR6

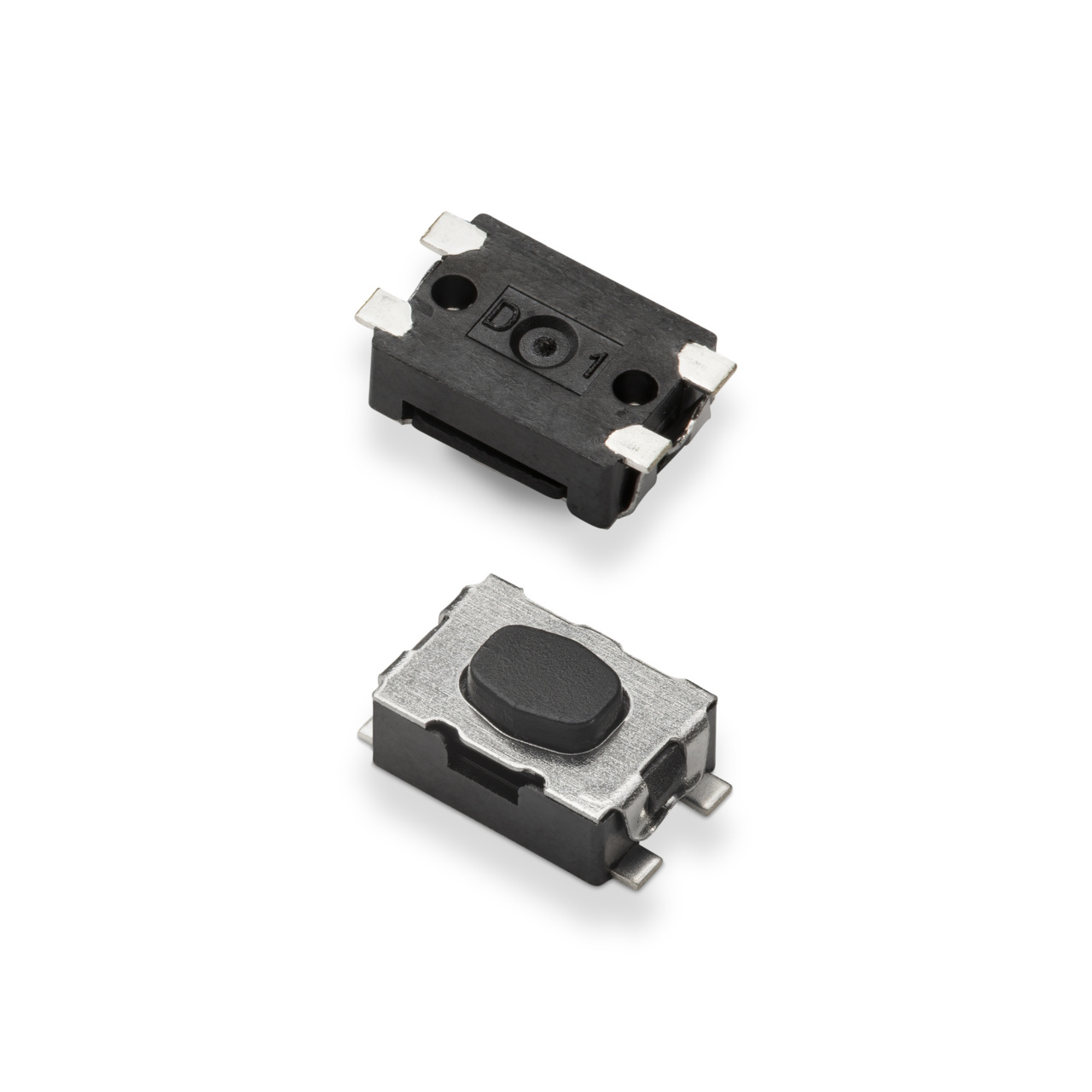

The KMR6 series microminiature SMT top actuated switch is IP67 rated with ultra-low current capabilities. Its long-life and excellent tactile feel make it ideal for industrial, medical and automotive applications that need to dependably operate under the harshest of condition.
| 参数 | 数值 |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 0.001 mA |
Operating Force | Min 2.25 N / Nominal 3 N / Max 3.75 N |
Electrical Travel | Min 0.15 mm / Nominal 0.25 mm / Max 0.35 mm |
Mechanical Life Cycles | 150000 |
入口保护 | IP 67 |
Illumination | 不適用 |
Contact Plating | 金 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
高度 | 1.9 |
Terminals Type | 表面安装式 |
Terminals Plating | Lead free gold |
Terminals Complementary Information | G |
Washing Process - Compatibility | Not Compatible |
Activation Orientation | Top actuated |
电路 | SPST NO |
- Watertight IP67
- Standard and long life version
- No ground pin
- Ultra low current capabilities
- Excellent tactile feel
KMR633NGULC 应用
- 运输
- 医疗
- 消费
- 工业
KMR633NGULC资源
链接已复制到剪贴板显示 1 到 1 的 1 总结果
分享
| 产品号 | 零件描述 | RoHS | 无铅 | RoHS（2015/863/EU）认证 | REACH（SVHC）声明 | REACH（SVHC） | 无卤素 | IPC-材料声明 | |
|---|---|---|---|---|---|---|---|---|---|
| Y78B63324FP | KMR633NG ULC LFG | 查看更多 |
