KSA0M411

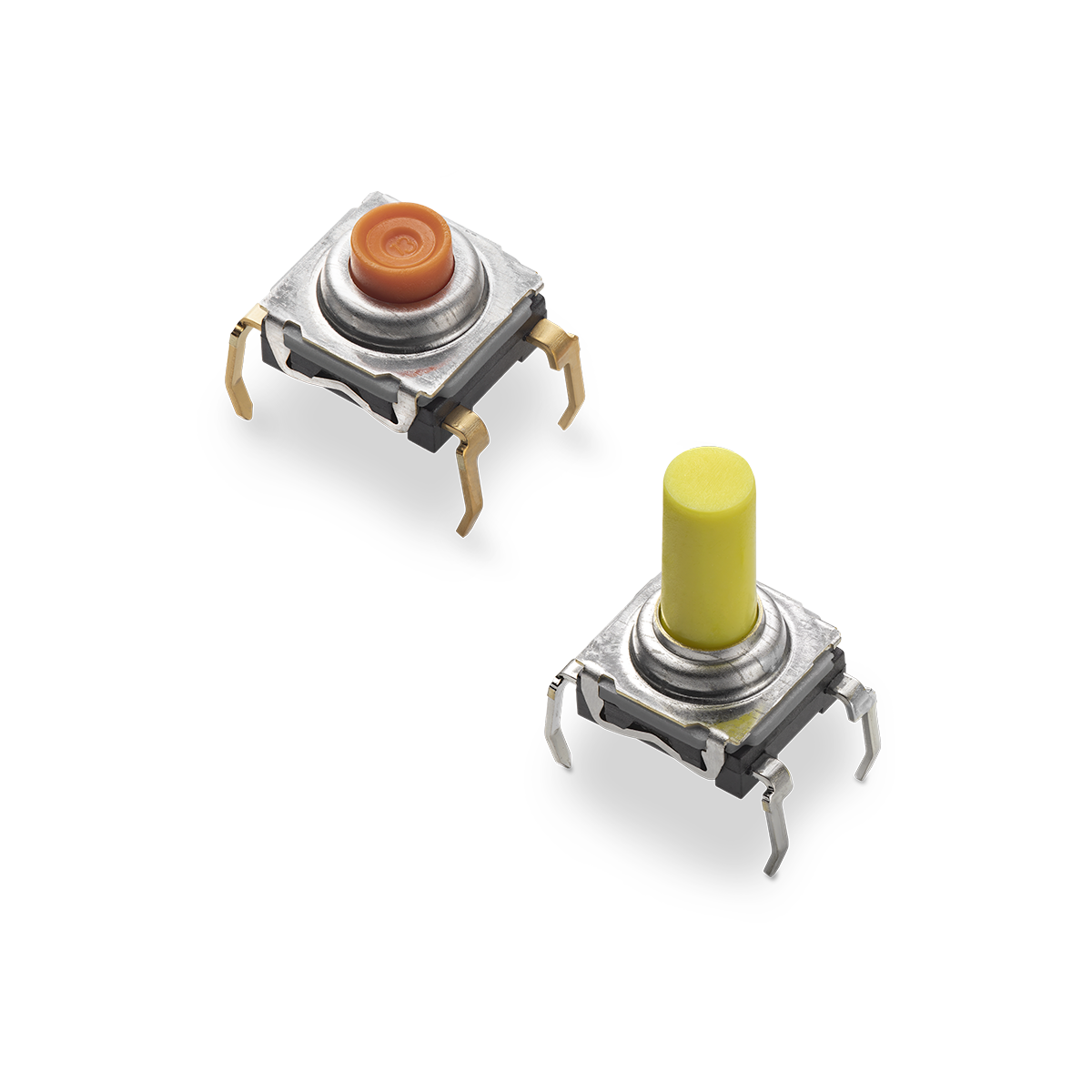

KSA0M411 LFTR | Series: KSA and KSL MKII
KSA & KSL MKII series switch has the highest sealing performance, making it ideal for consumer, automotive and industrial applications that must withstand erosion and harsh environments, such as regular exposure to water. The KSA & KSL MKII is also highly responsive due to its excellent tactile feel.
| 参数 | 数值 |
|---|---|
Activation Type | Momentary action |
Rating - Minimum Current | 1 mA |
Operating Force | Min 2.25 N / Nominal 3 N / Max 3.75 N |
Electrical Travel | Min 0.4 mm / Nominal 0.6 mm / Max 0.8 mm |
Mechanical Life Cycles | 100000 |
入口保护 | IP 60 |
Illumination | 不適用 |
Contact Plating | 银奖 |
Electrical Rating - Activated - Voltage DC | Min 0.02 Volt / Max 32 Volt |
高度 | 4.75 |
Terminals Type | 通孔 |
Terminals Plating | Lead free tin |
Terminals Complementary Information | M |
Washing Process - Compatibility | 是 |
Activation Orientation | Top actuated |
电路 | SPST NO |
- Highest tact switch sealing performance
- Improved sealing through a modification of the crimping technique and to a double overmolding of the terminal
- Totally sealed
- Up to 1M operations
- RoHS compliant and compatible
KSA0M411资源
链接已复制到剪贴板显示 1 到 1 的 1 总结果
分享
| 产品号 | 零件描述 | RoHS | 无铅 | RoHS（2015/863/EU）认证 | REACH（SVHC）声明 | REACH（SVHC） | 无卤素 | IPC-材料声明 | |
|---|---|---|---|---|---|---|---|---|---|
| Y33R41115FPLFT | KSA0M411 LFTR | 查看更多 |
如果您要查找的产品环境信息未出现在此选项卡中，请填写 产品环境信息申请表。
