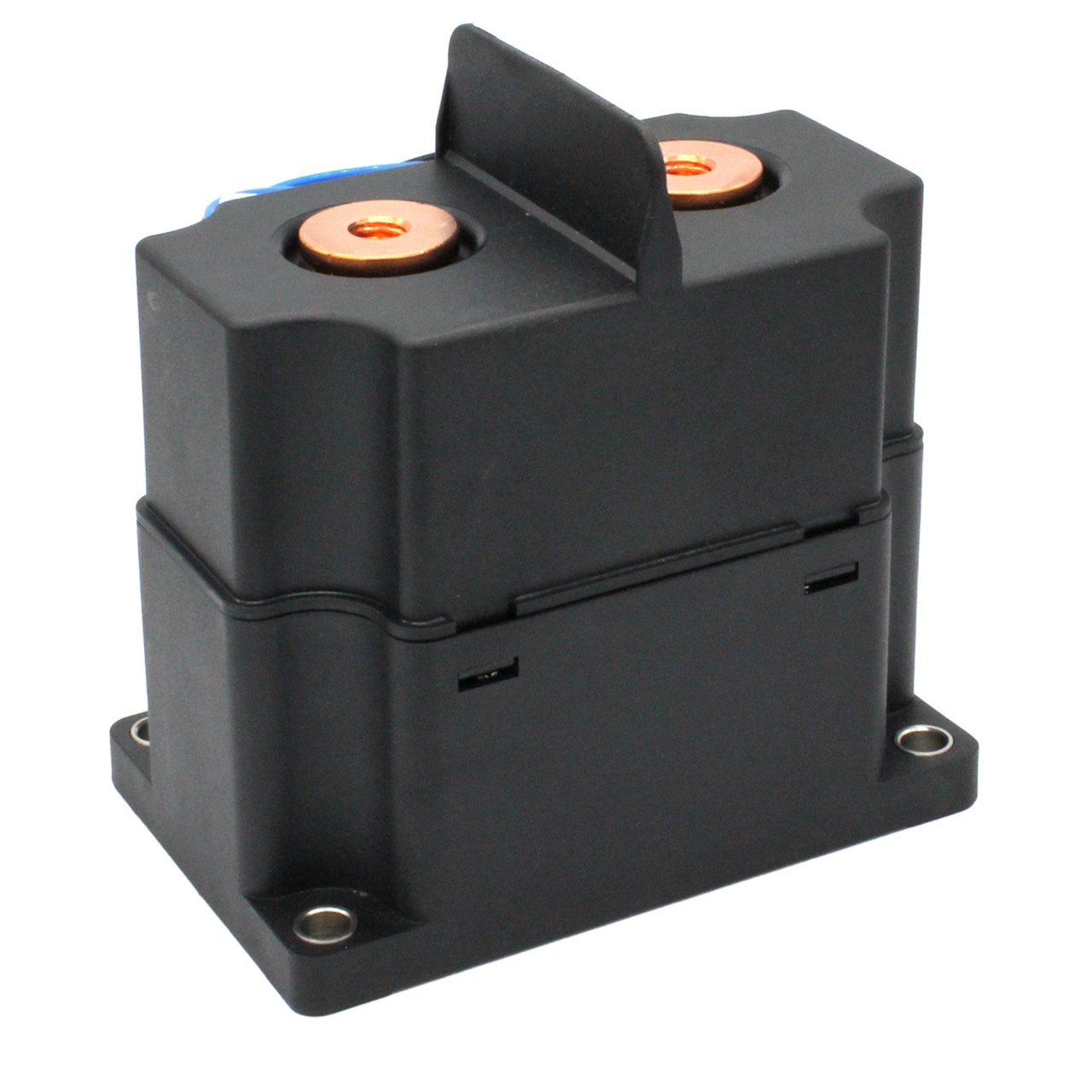

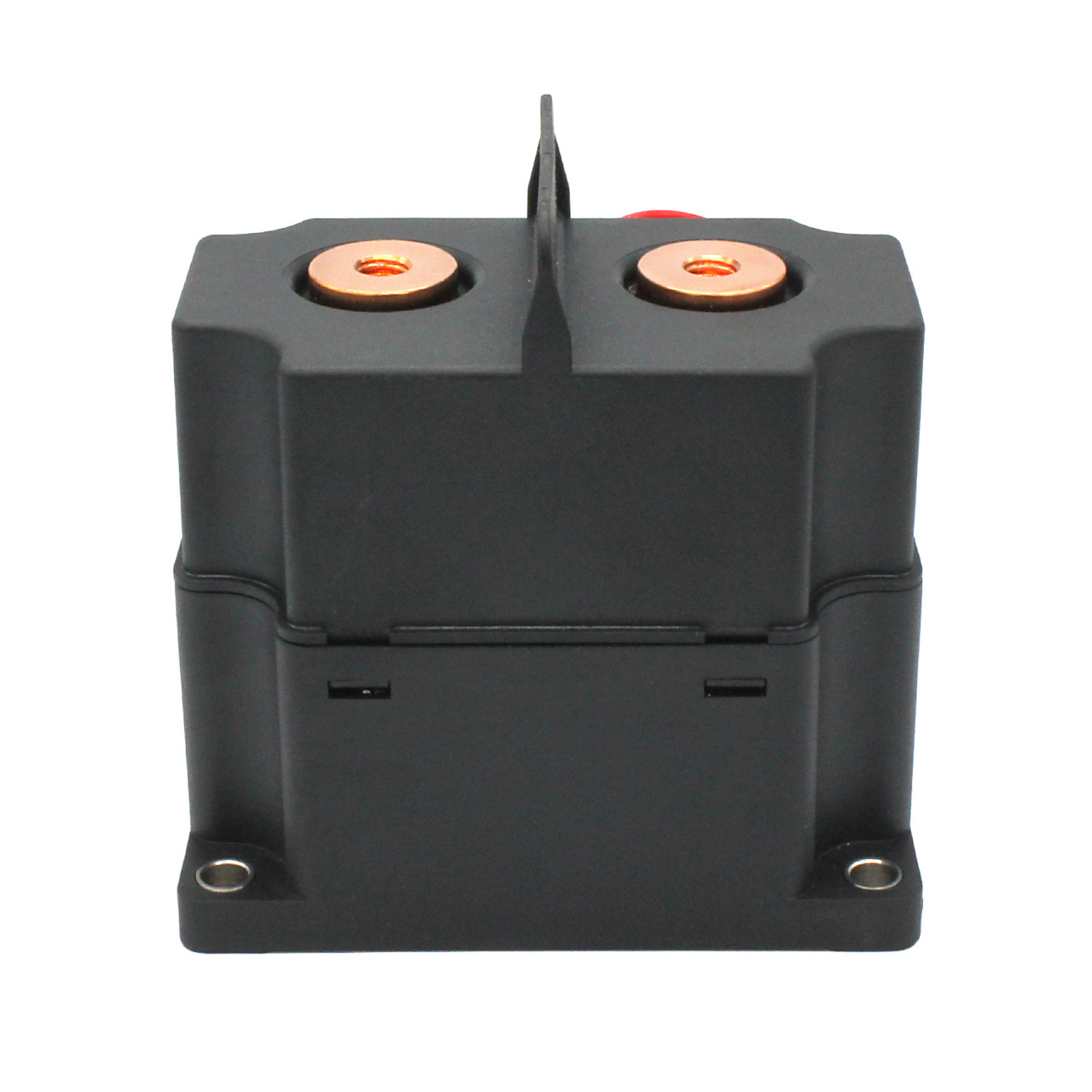

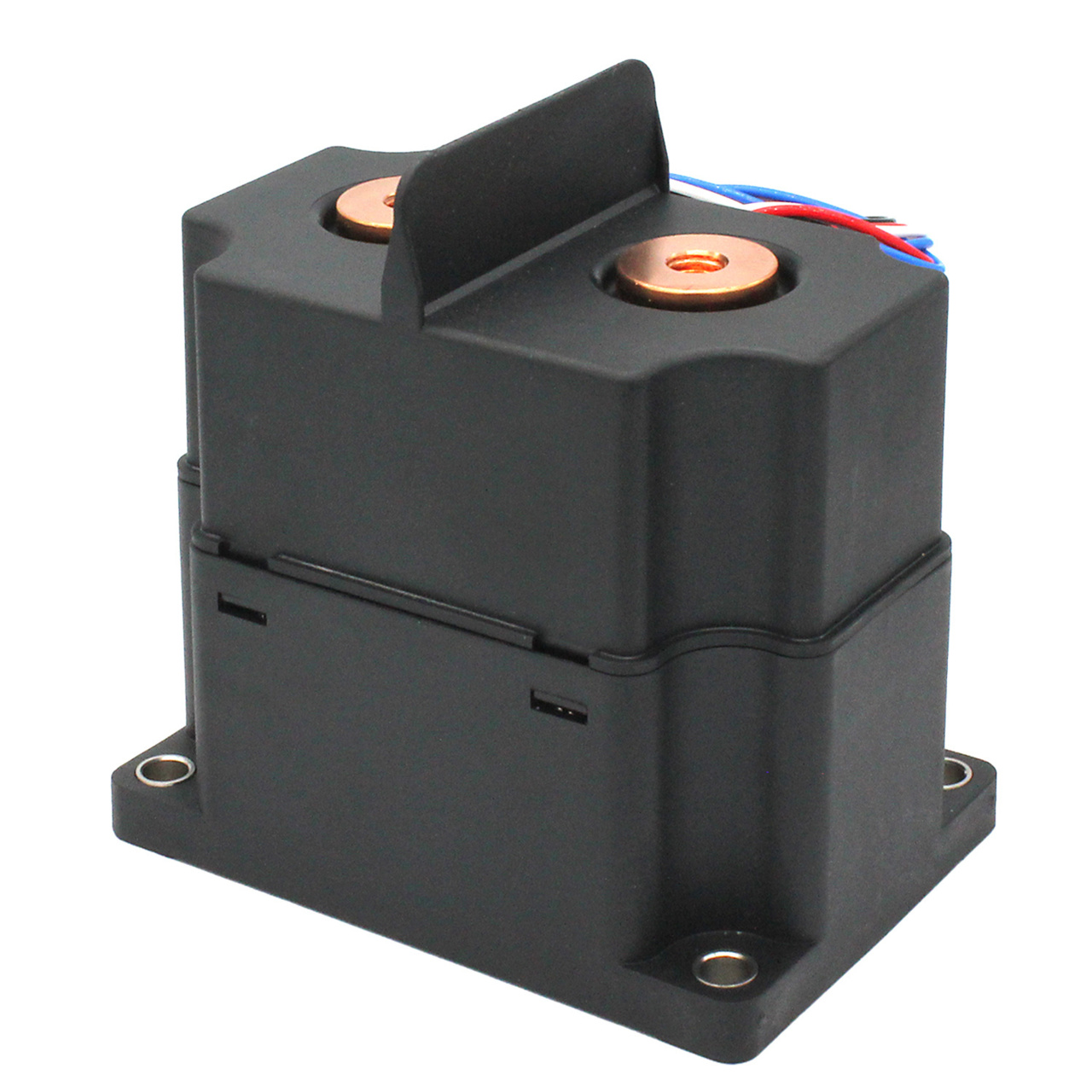

DCNHF800MH24-F
CONTACTOR 800A 1.8KV 24Vcoil NP Aux Fem | Series: DCNHF800MH
Designed for electric vehicle and industrial applications, the DCNHF800MH Series high-voltage DC contactor is suitable for battery power supply, charging systems, motor control, circuit insulation, circuit protection, and industrial safety devices. Rated for 800A continuous current and up to 1800V operating voltage, its non-polarized contacts ensure this contactor is a match for a variety of electrical systems.
Its double-coil economizer minimizes power consumption once the contactor is engaged, reducing heat generation and improving overall efficiency and reliability. While the corrosion-resistant resin housing provides reliable performance in harsh environments. Sealed contacts prevent electrical arc leakage for maximum safety, and the bottom-mount contactor can be installed in any orientation for flexible system integration.
This model (DCNHF800MH24-F) has a 24V DC coil rating.
| 参数 | 数值 |
|---|---|
额定电流（连续），单位为安培 | 800 |
最大直流电压（V） | 1800 |
电路 | SPST |
入口保护 | IP67 |
输出端子 | M5 |
触点 | 铜合金 |
外壳 | 尼龙UL 94-V0 |
线圈类型 | 双 |
辅助触点 | 是 |
输入端子 | M8 |
安装方法 | 底部安装 |
正常位置 | 正常断开型 |
极化 | 否 |
推荐扭矩 | Mounting: 3-4Nm Terminal: 12-15Nm |
线圈电压 | 24 |
- 24V DC coil rating
DCNHF800MH24-F资源
链接已复制到剪贴板显示 1 到 1 的 1 总结果
分享
| 产品号 | 零件描述 | RoHS | 无铅 | RoHS（2015/863/EU）认证 | REACH（SVHC）声明 | REACH（SVHC） | 无卤素 | IPC-材料声明 | |
|---|---|---|---|---|---|---|---|---|---|
| DCNHF800MH24-F | CONTACTOR 800A 1.8KV 24Vcoil NP Aux Fem | 查看更多 |
如果您要查找的产品环境信息未出现在此选项卡中，请填写 产品环境信息申请表。
